Callflows. Fax Actions. Fax Boxes

Description: This is how the Fax Boxes Action works and how it can be integrated into call flows.

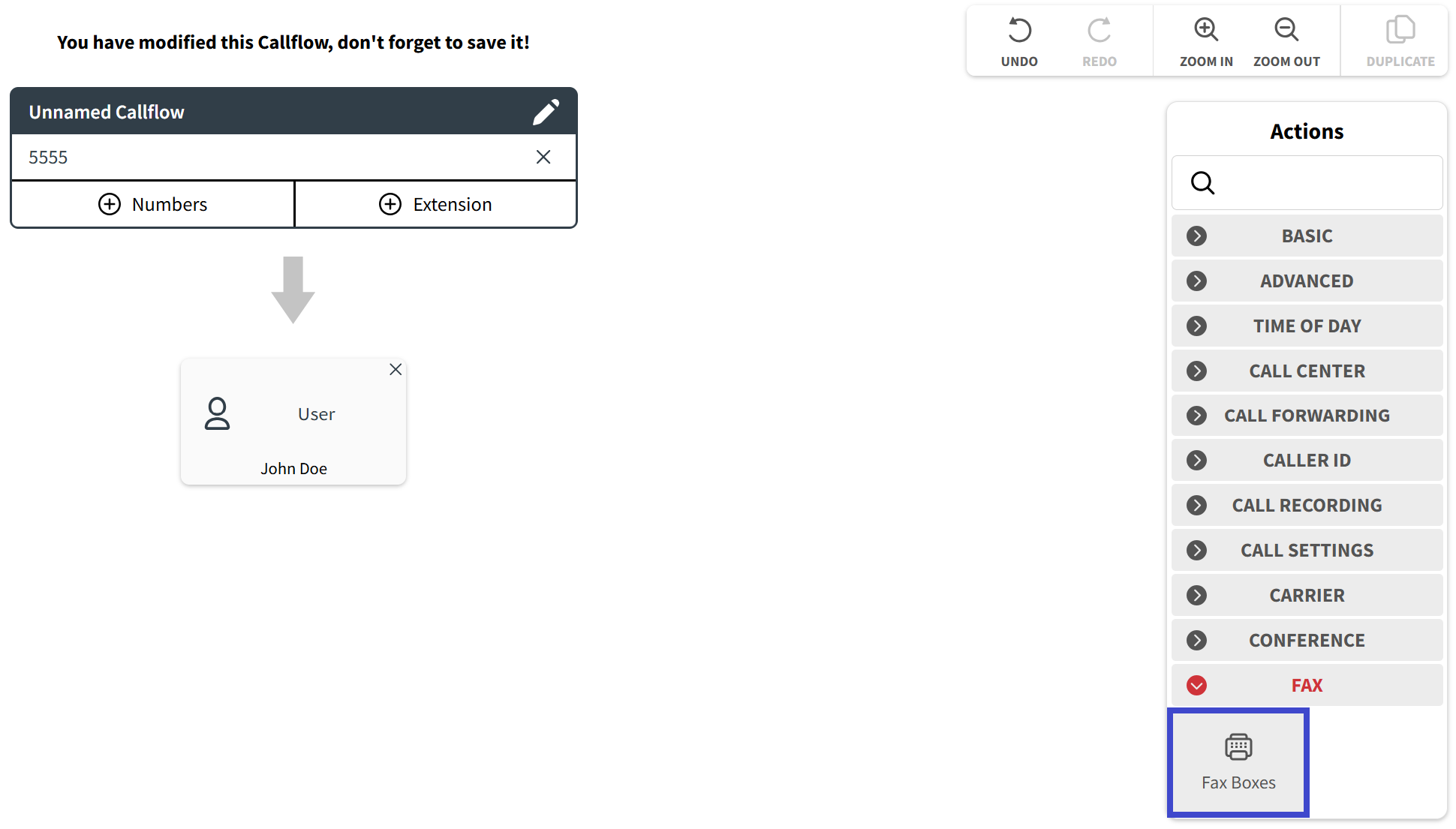

After creating a new call flow, completing the Main Callflow Block with essential information, and assigning a Seat to the configured call flow, you can implement a Fax Box to the configured call flow. The Fax Boxes Block is located within the Fax group of Actions in the Catalog of Actions on the Callflow Configurator's right-hand side.

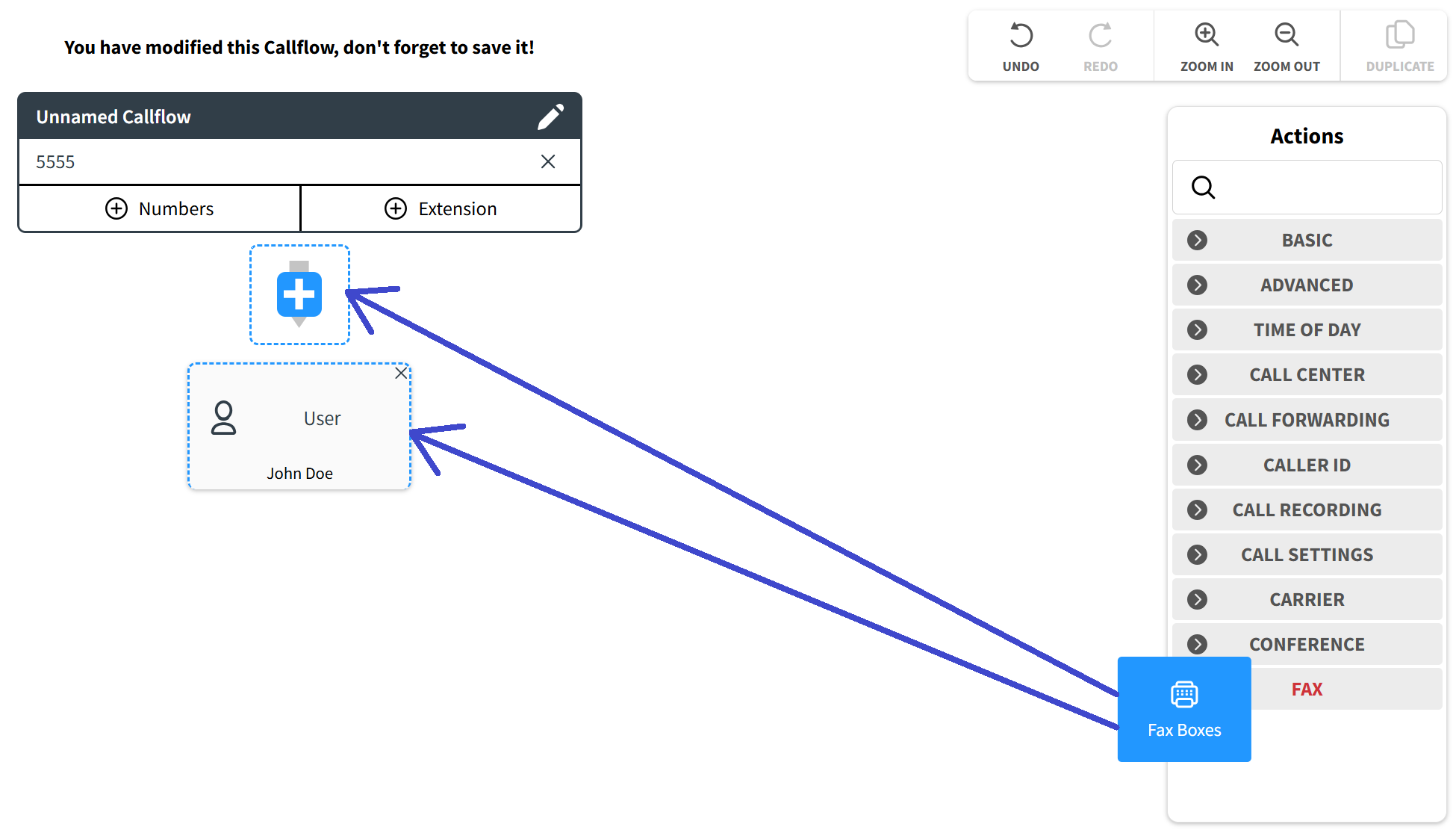

By using the drag-and-drop technique, you can transfer the Fax Boxes Block from the Catalog and integrate them into several places of the Callflow diagram.

When you drop the Fax Boxes Block onto the Callflow diagram, a pop-up window will appear displaying the various parameters of the Block that need to be configured.

• Faxbox: when you click on this field, a drop-down menu will be displayed, containing all the Fax Boxes that have been created under your account (as described in this article).

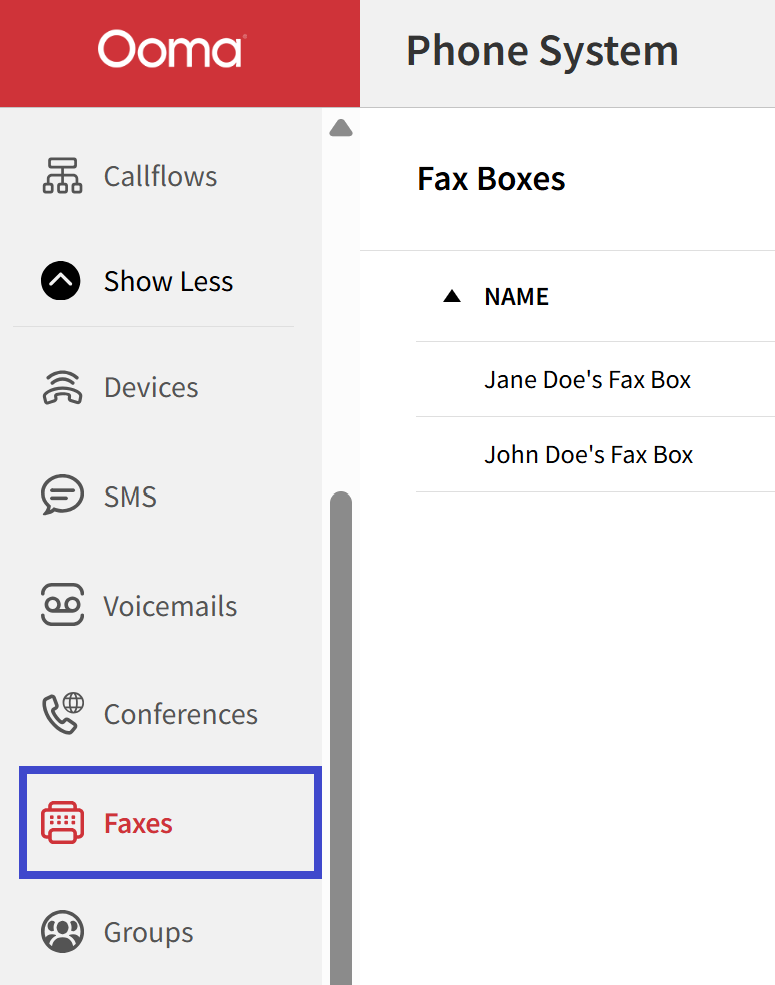

All Fax Boxes you have created are also available in the Faxes Section of the Phone System App.

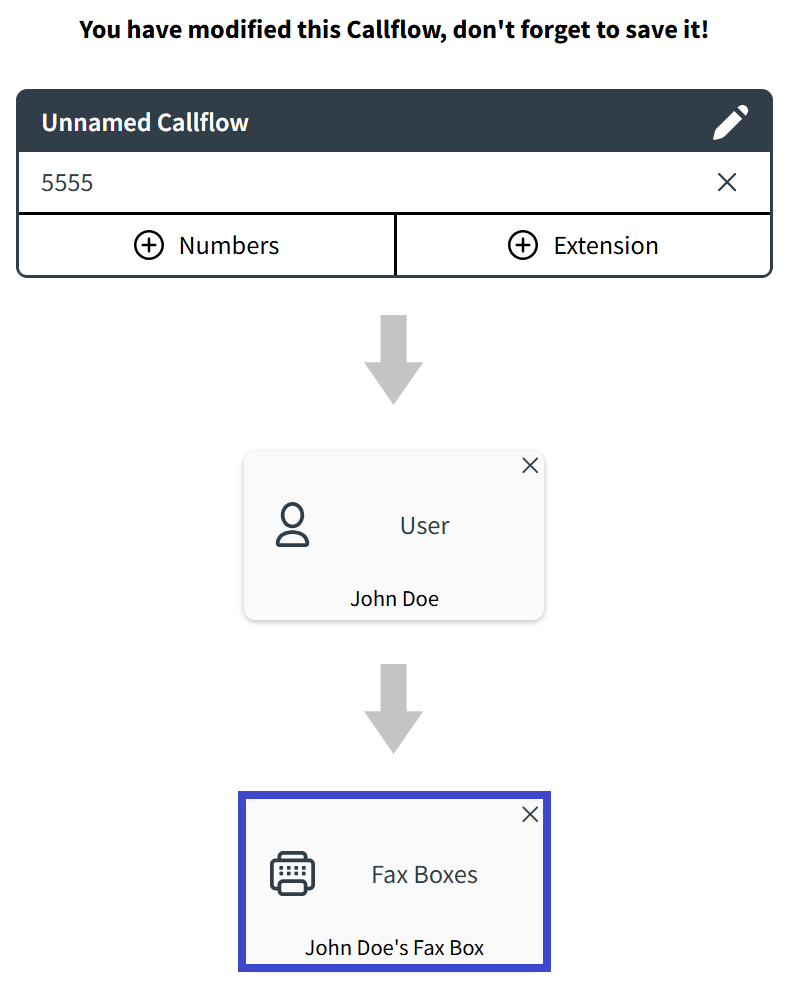

A properly configured Fax Box integrated into a call flow will be displayed as follows.

Within the Block, you will be able to see the name of the Fax Box.

Once changes in the Callflow diagram have been made, the "Save" button will become active, and clicking on it will open a drop-down menu with three saving options.

• Save Changes: by clicking this button, you will easily save all of the changes you have made.
• Save and Duplicate: clicking on this button will save all modifications made to the current call flow and create a new call flow that duplicates the original. The name of the duplicated call flow will include the name of the original call flow, followed by the word "copy".

The main Block of the duplicated call flow, which displays the extension and phone numbers in the original call flow, will be left blank.

• Save and Create: clicking on this button will save all modifications made to the current call flow and create a new empty call flow.
• Cancel: clicking on this button will cancel any modifications made to the call flow. If changes have been made, the system will prompt you to confirm the cancellation of those changes.
